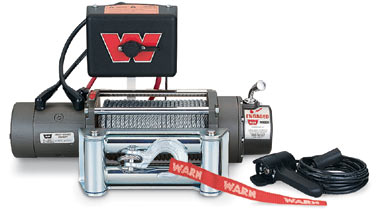

Warn M8000 Winch - #26502
Compact. Tough. An outstanding value for trucks, sport utility vehicles and Jeeps. The M8000, with its 4.8-hp Series Wound motor and 3-stage planetary geartrain, packs 8,000 lbs. of pulling power to get the job done. Available with either 80' of wire rope and hawse fairlead or 100' of wire rope and roller fairlead. Pulls a fast 8 ft. per minute at rated load.
| M8000 SPECS/PART NUMBERS |
| Part Number: PN 20910 CE (12V DC) 80' wire rope and hawse fairlead |
| Part Number: PN 26502 CE (12V DC) 100' wire rope and roller fairlead |
| Part Number: PN 265032 CE (24V DC) 100' wire rope, roller fairlead, safety hook and thimble |
| Rated Line Pull: 8000 lbs. (3630 kgs.) single-line |
| Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight: 74 lbs. (34 kgs.) |
| Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.) |
| Fairlead for PN 20910: Hawse |
| Fairlead for PN 26502, 265022, 265032: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Argent Gray Powder Coat |
| Nuts/Bolts: PN 39625 |
| 12V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
42(12.8) |
80 amps |
1/8000(3629) |
| 2000(910) |
16(4.88) |
200 amps |
2/7280(3302) |
| 4000(1810) |
11.9(3.63) |
285 amps |
3/6670(3026) |
| 6000(2720) |
9.79(2.98) |
350 amps |
4/6230(2826) |
| 8000(3630) |
8.01(2.44) |
435 amps |
|
| 24V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
27.3(8.32) |
46 amps |
1/8000(3629) |
| 2000(910) |
17.1(5.21) |
99 amps |
2/7460(3384) |
| 4000(1810) |
12.6(3.84) |
145 amps |
3/3980(3166) |
| 6000(2720) |
10.3(3.14) |
190 amps |
4/6620(3003) |
| 8000(3630) |
8.8(2.68) |
235 amps |
|
| Above performance specs are based on first layer of drum |
 |
Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.) |
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
|
|
|
|
