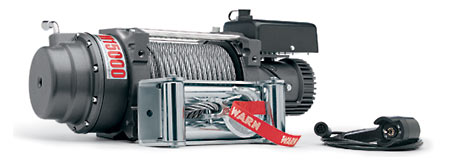

Warn M15000 Winch - #47801
When you work hard enough to need a really big truck, you'll want a winch with enough capacity to get the job done. The WARN M15000 winch boasts high strength carrier plates to handle the gear train stresses of a 15,000lb load. The gear ratio is 315:1, with 90 feet of 7/16" wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.
| M15000 SPECS/PART NUMBERS |
| Part Numbers: PN 47801 CE (12V DC), PN 478022 CE (24V DC) |
| Rated Line Pull: 15000 lbs. (6804 kgs.) single-line |
| Motor: 12V 4.6 hp, 24V 2.5 hp Series WoundTM |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 315:1 |
| Lubrication: Molylube #1 or Aeroshell #17 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 3.5"/8.2" (9cm/21cm) |
| Weight: 136lbs. (62kgs.) |
| Wire Rope: 90', 7/16" diameter (27m, 11mm diam.) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Argent Gray Powder Coat |
| Nuts/Bolts: PN 61946 |
| CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead and safety hook. |
| 12V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
22.2(6.77) |
67 amps |
1/15000(6804) |
| 2000(910) |
7.27(2.22) |
135 amps |
2/13890(6300) |
| 4000(1810) |
5.41(1.65) |
185 amps |
3/11520(5225) |
| 6000(2720) |
4.43(1.35) |
235 amps |
4/9840(4463) |
| 8000(3630) |
3.79(1.16) |
285 amps |
|
| 10000(4540) |
3.31(1.01) |
335 amps |
|
| 12000(5440) |
2.93(.893) |
385 amps |
|
| 14000(6350) |
2.61(.796) |
435 amps |
|
| 15000(6800) |
2.48(.756) |
460 amps |
|
| 24V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
28(8.6) |
24 amps |
1/15000(6800) |
| 2200(1000) |
10.2(3.1) |
85 amps |
2/13900(6300) |
| 4400(2000) |
7.5(2.3) |
115 amps |
3/11400(5200) |
| 6600(3000) |
6.9(2.1) |
142 amps |
4/9700(4400) |
| 8800(4000) |
6.6(2.0) |
170 amps |
|
| 11000(5000) |
6.2(1.9) |
190 amps |
|
| 13200(6000) |
5.2(1.6) |
210 amps |
|
| 15000(6800) |
4.3(1.3) |
235 amps |
|
| Above performance specs are based on first layer of drum |
 |
Winch Dimensions: 25.2" L. x 8.5" D. x 11" H.
(556mm L. x 215mm D. x 279mm H.) |
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
|
|
)
