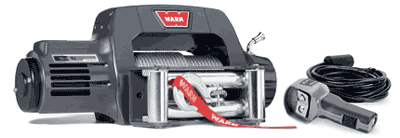

Warn 9.5ti Thermometric Winch - #67550
The 9.5ti packs 9500 lbs of pulling capacity into a massive 12.5 lb aluminum die-cast body. This winch not only looks great, but sheds the elements like no other winch on the market: seals at the key points give extreme-duty water resistance. A Gen II Series Wound motor delivers just the right balance between torque and speed. Plus another Warn Industries first - operator feedback - the thermometric indicator gives the operator information about motor temperature during the winching operation.
Also available in the Multi-Mount portable winch configuration.
| 9.5ti SPECS/PART NUMBERS |
| Part Number: PN 67550 (12V DC) |
| Rated Line Pull: 9500 lbs. (4310 kgs.) single-line |
| Motor: Gen II, Series WoundTM |
| Remote Control: Remote switch, 12' (3.7m) lead, thermometric indicator, S2 elements, integrated flashlight |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 156:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight: 89 lbs. (36.3kgs.) |
| Wire Rope: 125', 5/16" diameter (30m, 8mm diam.) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Chromate with high-gloss powder coat |
| Nuts/Bolts: PN 39570 |
| 12V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
62(18.9) |
47 amps |
1/9500(4313) |
| 2000(910) |
16.3(4.97) |
160 amps |
2/8650(3927) |
| 4000(1810) |
11.8(3.60) |
230 amps |
3/7920(3595) |
| 6000(2720) |
9.31(2.84) |
305 amps |
4/7400(3359) |
| 8000(3630) |
7.59(2.31) |
370 amps |
5/6940(3150) |
| 9500(4310) |
6.67(2.03) |
425 amps |
|
| Above performance specs are based on first layer of drum |
 |
Winch Dimensions: 23.1" L. x 6.3" D. x 10.0" H.
(587mm L. x 160mm D. x 254mm H.) |
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
|
|
|
|
