NOTE: THIS WILL ONLY FIT IF YOU DO NOT HAVE THE CYCLONE AIR CLEANER ATTACHEMENT (STOCK ITEM ON 2008+ FJ'S), IF YOU HAVE THE CYCLONE AIR CLEANER ATTACHEMENT, USE SS415HF.

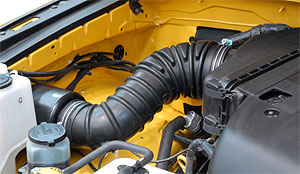

THE CYCLONE AIR CLEANER ATTACHEMENT IS ON THE AIR TUBE COMING OUT OF THE FENDER JUST BEFORE THE AIR BOX, AND HAS A REMOVABLE CUP ON THE BOTTOM, SEE PICTURE BELOW

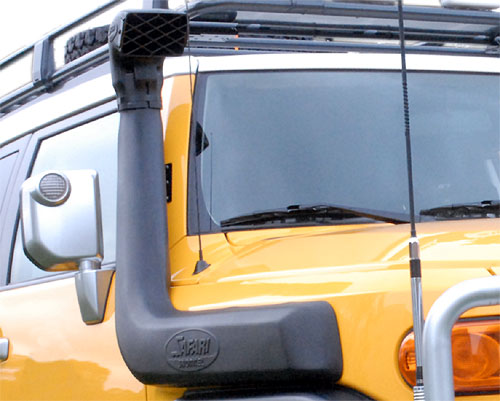

The Safari SS410-HF snorkel is tough and stylish and has been designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of the Toyota FJ Cruiser.
With the variety of engine enhancements that this vehicle will invariably receive by dedicated enthusiasts, Safari took the decision to design a snorkel system that not only exceeded the air flow requirements of the stock engine configuration, but also satisfied the mass air flow demands of modified engines that produce greater than stock horsepower.
Close attention to the internal cross sectional profile and area, air velocity and flow path through each and every point along the entire length of the snorkel system ensures that the greatest air flow is achieved.

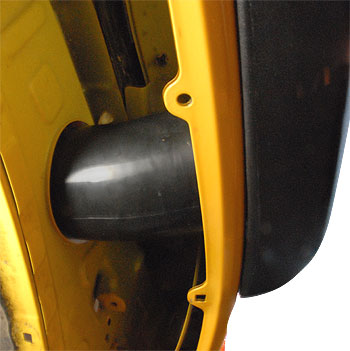

This of course applies to components that are not visible. A short straight shot of air through the tough rubber joiner hose delivers air from the snorkel body directly into the stock air intake assembly. The result is maximum engine performance and the best possible fuel economy.
In fact, the engine bay layout essentially remains unchanged for the maximum compatibility with other aftermarket accessories such as dual batteries etc. This ensures that the FJ Cruiser owner has the most flexibility possible in terms of installing additional under-hood accessories.
Huge air flow is but one aspect of the ultimate in snorkel design. The Safari air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
In addition, the detachable Safari air ram can be rotated to any position. This means great peace of mind for those who plan to travel in cold or high altitude conditions where heavy snow falls are anticipated. By rotating the air ram to face away from the prevailing wind/direction of motion, the air ram delivers additional protection from the choking effects of snow build-up inside the air intake.
The Safari Snorkel body is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.

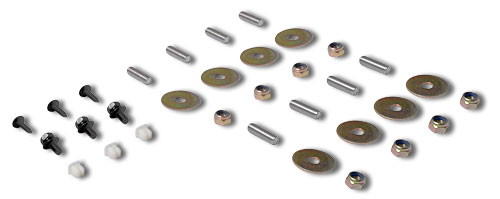

The Safari Snorkel system is supplied as a complete and comprehensive system that includes every nut, bolt and bracket required for installation - right from robust zero-corrosion stainless steel studs, self-locking nyloc nuts and large diameter anodized body washers through to the tough plastic A-pillar inserts.
Shipping info: 56" x 19" x 8", Weight 13 lbs
