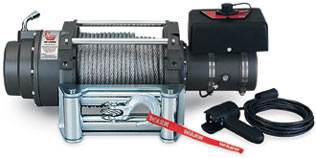

For heavy-duty winching needs, this winch is a champion workhorse. Big torque, power and quick no-load retrieval speed is 30 feet per minute. Its design is low profile, so it'll fit where you want. And it's powered by the 4.6-hp Series WoundTM motor and our proven three-stage planetary gear train. With 125 ft. of 3/8" wire rope, the WARN M12000 can solve most any pulling problem.
| M12000 SPECS/PART NUMBERS |
| Part Numbers: PN 17801 CE (12V DC), PN 265072 CE (24V DC) |
| Rated Line Pull: 12000 lbs. (5440 kgs.) single-line |
| Motor: 12V 4.6 hp, 24V 2.5 hp Series WoundTM |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 261:1 |
| Lubrication: Aeroshell # 17 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 3.5"/8.2" (9cm/21cm) |
| Weight: 136lbs. (62kgs.) |
| Wire Rope: 125', 3/8"diameter (38m, 9.5mm diam) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Argent Gray Powder Coat |
| Nuts/Bolts: PN 39572 |
| CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble. |
| 12V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) | Line Speed
FT./min(M/min.) | Motor
Current | Pull by layer
layer/Lbs(Kgs.) |
| 0 | 30(9.14) | 67 amps | 1/1200(5443) |
| 2000(910) | 14(4.27) | 140 amps | 2/11120(5044) |
| 4000(1810) | 8.62(2.63) | 210 amps | 3/10340(4690) |
| 6000(2720) | 6.92(2.11) | 250 amps | 4/9770(4432) |
| 8000(3630) | 5.80(1.77) | 320 amps | 5/9250(4196) |
| 10000(4540) | 4.39(1.34) | 370 amps | |
| 12000(5440) | 3.86(1.18) | 440 amps | |
| 24V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) | Line Speed
FT./min(M/min.) | Motor
Current | Pull by layer
layer/Lbs(Kgs.) |
| 0 | 31.94(9.57) | 24 amps | 1/12000(5443) |
| 2000(910) | 11.7(3.57) | 105 amps | 2/11120(5044) |
| 4000(1810) | 9.5(2.90) | 129 amps | 3/10340(4690) |
| 6000(2720) | 8.5(2.59) | 152 amps | 4/9770(4432) |
| 8000(3630) | 7.5(2.29) | 175 amps | 5/9250(4196) |
| 10000(4540) | 6.5(1.98) | 198 amps | |
| 12000(5440) | 6.0(1.83) | 221 amps | |
| Above performance specs are based on first layer of drum |
 |
Winch Dimensions: 25.2" L. x 8.5" D. x 11" H.
(556mm L. x 215mm D. x 279mm H.) |
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
